Cable Extension Kit | THSER102
Cable Extension Kit for Raspberry Pi Camera Modules V2/HQ/V3
Overview
Adding some outstanding features to the previous THSER101, the THSER102 allows Raspberry Pi Camera to be moved many METERS away from Raspberry Pi Computer!
Key Features: (New Features Circled)
Raspberry Pi 5 is Now Supported in addition to Pi 4 Model B and others!
Raspberry Pi Camera Module 3 is Now Supported in addition to V1/V2/HQ!
>10-meter Extension with Standard LAN Cable
Plug & Play
No Software Configuration Needed
Camera Works as if THSER102 does not Exist!
Advanced Applications Supported
HAT on HAT
3ch GPIOs Extension
20% Lower Power Consumption
Supports Raspberry Pi Camera Module 3
The new THSER102 supports Raspberry Pi’s latest Camera Module 3!
Supported Cameras:
Raspberry Pi Camera V2
Raspberry Pi High Quality (HQ) Camera
Raspberry Pi Camera Module 3
[Coming Soon] Raspberry Pi Gloabal Shutter (GS) Camera
Note: For more information about GS Camera support, contact us.
Supports HAT on HAT
The GPIO connector of THSER102 is repeatable. Thus, you can add another HAT on top of the THSER102.

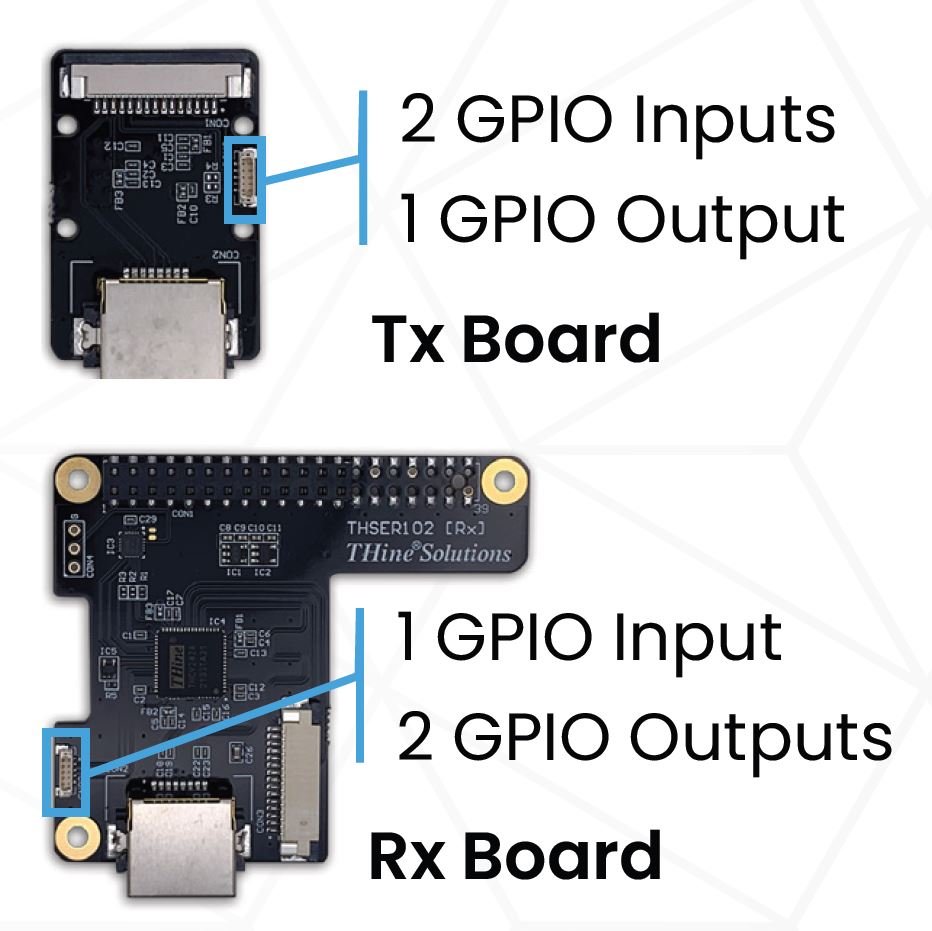

3ch GPIO Extension
The THSER102 supports 3 pins per one side for 3 GPIO lines. You can use the lines for various camera related signals, e.g., shutter button at Camera, LED control from Computer.
Supported GPIO:
From Computer to Camera | 1 GPIO
From Camera to Computer | 2 GPIOs
20% Lower Power Consumption
Thanks to hardware architecture optimization, we successfully reduced the power consumption of the kit, allowing the total (Camera and the THSER102) power to be 4 fifth of the previous solution (Camera and THSER101).
Power Comsumption Example:
215mA at 5V | Raspberry Pi HQ Camera + THSER102
267mA at 5V | Raspberry Pi HQ Camera + THSER101
