Products to Replace Short-Supply LVDS ICs
Introduction
Due toS emiconductor supply shortages,it is harder than ever to find standard IC products.If you are having trouble finding the LVDS ICs you need,check with THine for alternative solutions.
Why THine LVDS? -Decades of Excellence
Wtih serving Display and Camera customers in Japan for decades, THine Electronics has market proven reputation for LVDS
products.
Higher Performance

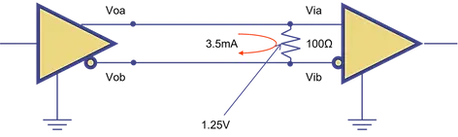

WhileL VDS (Low VoltageD ifferenitalS ignaling) isd efined as
an industrial standard (TIA/EIA-644 and IEEE1 596.3),th e
performance ofb otht ransmtiters and receivers maya fect
design evaluation and validation process
3.5mA
1.25V
THine's LVDST x( Transmitter) productsi ng eneralh ave less
outputs kew,a nd biggera nd clearer signale yep attern
LVDS Standard is defined by TIA/EIA-644 and IEEE 1596.3

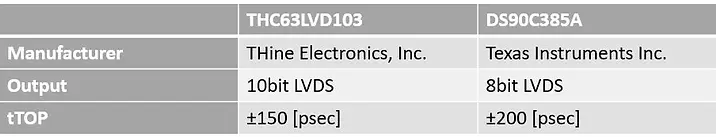

tTOP, the timing gap between CLK and Data also known as output skew,is one of key factors.
(The smaller,the better.) If the tTOP is too large,Rx may not be able to receive the datap roperly.
THC63LVDM83C (THine Electronics) Eye Pattern
DS90C385A (Texas Instrument) Eye Pattern
THine's LVDS Rx (Receiver) productsin g eneralh avel arger inputs kew margin
tRIP, the timing gap between CLK and Data acceptable to the Rx device also known as input skew margin, is one of key factors for LVDS Rx. (The larger, the better.) If the Rx receives LVDS input with too large tRIP, the data is not received properly.
Intense Support and Japan Quality
THine Electronics has served video interfacing applications in TV and related
consumer market since 1992, establishing outstanding reputation for its reilable
products and intense support.Partnering with global reputable foundries and
assembly companies,THine manages the whole manufacturing process in Japan
Some of its LVDS products are more than20 years old.THine has never ended lfie of any LVDS product wtih out providing succeeding product
1S09001:2015 Certificate of Registration (copy) I THine Electronics,Inc
ISO14001:2015 Certificate of Registration (copy) I THine Electronics,Inc
How to Find the Right THine Products
THine's SerDes (serializer/Deserializer) products are available at Digi-key.
Key parameters for THine LVDS products are
• Tx( TTL/CMOS to LVDS), Rx (LVDS to TTL/CMOS),or Repeater(LVDS to LVDS)
• Video bit count(8bit or 10bit)
〇 8bit products cover 6bit video
• Video port count(single or double)
〇 Some double-port products support Single-in Single-out,
Single-in Dual-out Dual-in Single-out,and Dual-in Dual-out
• Distribution (Replication) mode
〇 In this mode, Single-input is replicated to Double output
(2 streams of the same video)
THine Solutions would be more than happy to learny our application and try to coordinate work able solutions for you.If you do not find the right parts do not hesitate to askusl.
Cross Reference for LVDS ICs
The list of LVDS ICs that can be replaced with THine Electronics products are as follows.
Note:The LVDS IC you are using may not be listed here but replaceable with one(s) of THine products.If you do not find the
parts you are using,please list the part number when requesting us for quote.
BU7985KVT
Drop-in Part Available!
BU90RT102
Better Performance Part Available
BU90T81
Better Performance Part Available
DS90C185
Better Performance Part Available
DS90C187
Better Performance Part Available
DS90C3201
Alternative Part Available
DS90C3202
Better Performance Part Available
DS90C365A
Alternative Part Avaliable
DS90C383B
Drop-in Part Available!
DS90C385A
Drop-in Part Available!
DS90C387A
Better Performance Part Available
DS90CF363B
Alternative Part Available
DS90CF364
Alternative Part Available
DS90CF364A
Alternative Part Available
DS90CF366
Alternative Part Available
DS90CF383B
Drop-in Part Available!
DS90CF38
Drop-in and Better Performance Part Available
DS90CF384A
Drop-in and Better Performance Part Available!
DS90CF384AQ
Drop-in and Better Performance Part Available!
DS90CF386
Drop-in and Better Performance Part Available!
DS90CF388A
Better Performance Part Aailable
DS90CF564
Alternative Part Available
DS90CR215
Alternative Part Available
DS90CR216A
Alternative Part Available
DS90CR217
Alternative Part Available
DS90CR218A
Alternative Part Available
DS90CR285
Drop-in and Better Performance Part Available!
DS90CR286A
Drop-in Part Available
DS90CR287
Drop-in and Better Perfomance Part Available!
DS90CR288A
Drop-in Part Avaliable!
DS90CR481
Better Performance Part Available
DS90CR482
Better Performance Part Available
DS90CR483A
Better Performance Part Available
DS90CR484A
Better Performance Part Available
DS90CR485
Better Performance Part Available
DS90CR486
Better Performance Part Available
SN65LVDS93A
Drop-in and Better Performance Part Available!
SN65LVDS93A
Drop-in Part Available
SN75LVDS82
Drop-in and Better Performance Part Available!
SN75LVDS83B
Drop-in Part Available!
SN75LVDS83C
Drop-in Part Available!
V103A
Drop-in Part Available!
V104
Drop-in Part Available!
V105A
Drop-in Part Available!
V385A
Drop-in Part Available!
V386
Drop-in and Better Performance Part Available!
