THEIA-CAM™ Family Kit

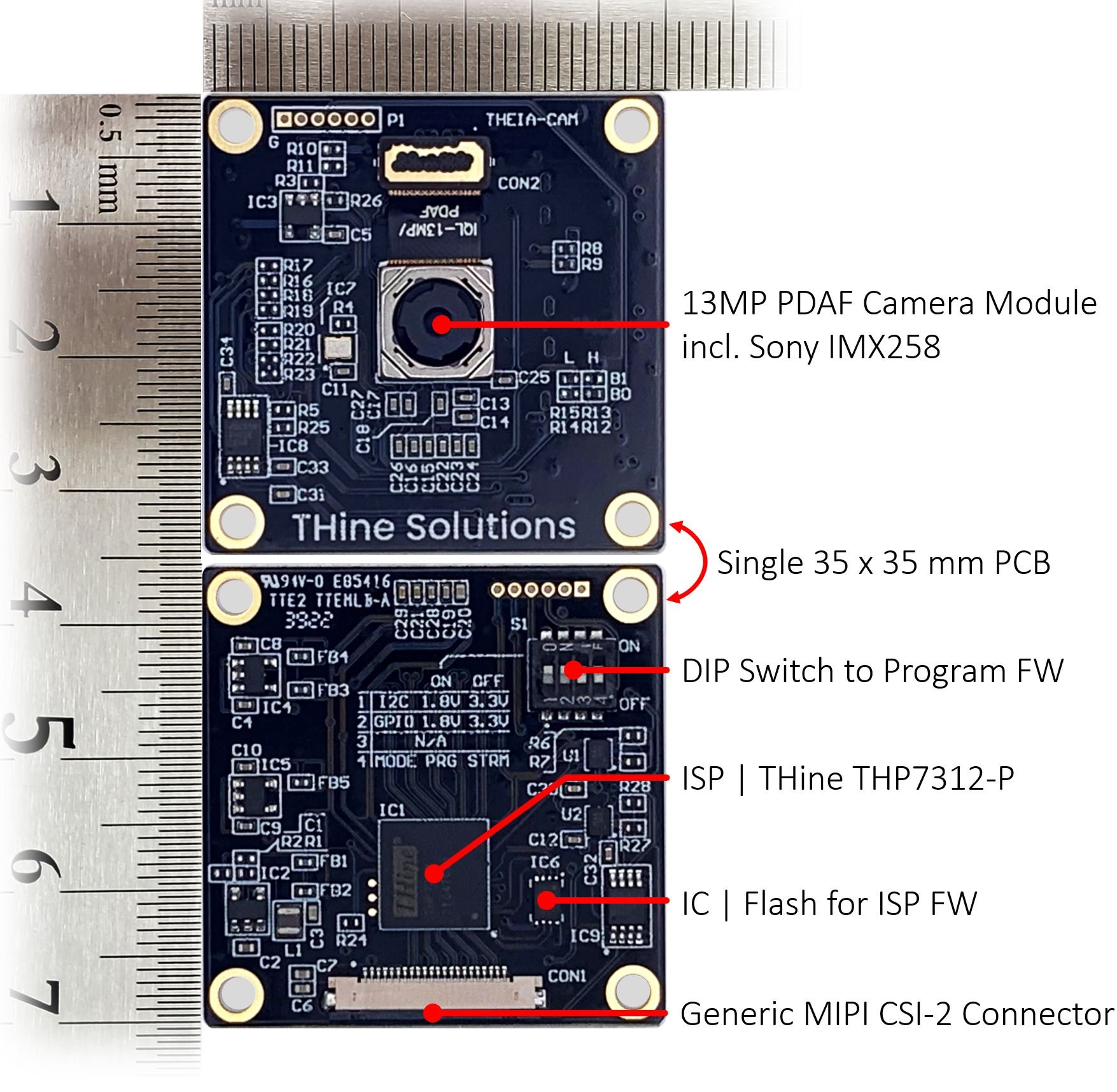

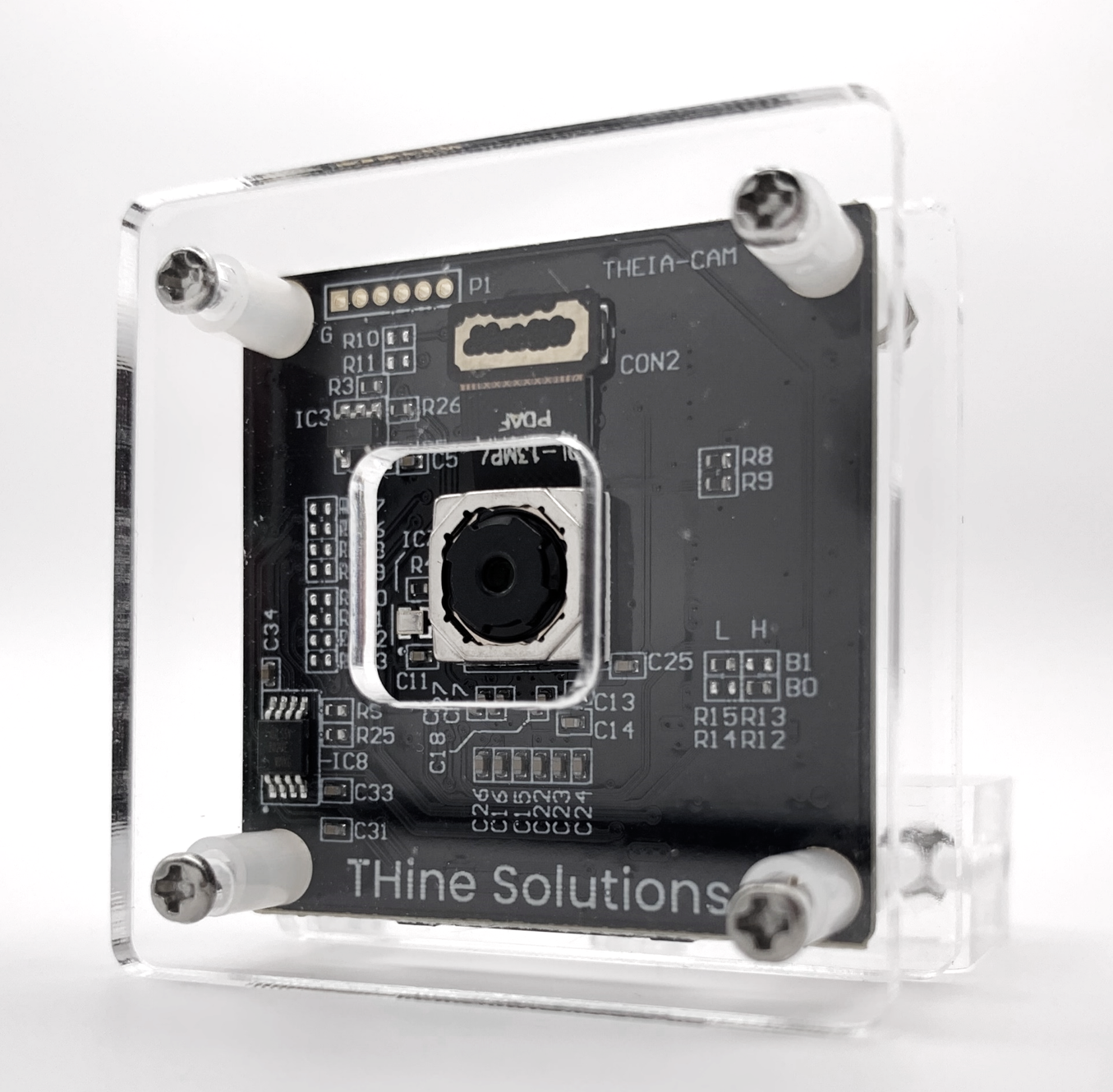

13MP PDAF Camera for Generic Use (THSCG101)

THEIA-CAM™ with CSI-2 Generic Connector

  • Multiple High-Resolution choices

  • Ultra-fast Autofocus (Phase-Detection Auto-Focus)

  • Best-in-Class Image Quality

  • Scalability for High Volume Production

  • Compatible with Multiple Platforms

Overview

Image Resolutions

Note 1: Resolution in Development: 13MP (4160 x 3120) 20fps YUV422

Note 2: Platform Support in Development: i.MX 8M Nano



Auto Focus Modes

  • One Shot Contrast AF

  • Continuous Contrast AF

  • One Shot Contrast and PDAF Hybrid AF

  • Continuous Contrast and PDAF Hybrid AF

V4L2 Image Functions

  • Size and Frame Rates | 1080p30, 1080p60, 3M at 30fps, 4K2K at 30fps, 13MP at 20fps(*)

  • Focus Mode | Auto or Manual

  • Auto Focus Method | Contrast or PDAF Hybrid

  • Focus Position | Infinity to 80mm

  • Brightness | 21 steps

  • Contrast | 21 steps

  • Saturation | 32 steps

  • Sharpness | 32 steps

  • Noise Reduction | Auto or Manual

  • Noise Reduction Level | 11 steps

  • Auto Exposure Bias | 13 steps from -6/3EV to +6/3EV

  • Power Line Frequency (Flicker Cancellation) | 50Hz or 60Hz

  • White Balance Mode | Auto or Manual

  • Manual White Balance | x1 to x7.97 for Red and Blue

  • Rotation | 0 or 180 degrees

  • Low Light Exposure Mode | Exposure Time or Fixed Frame Rate

(*) may not be available for all i.MX 8 EVKs, but updates are in developments. - Contact THine Solutions for more information.

Image Quality



How it works with i.MX 8M EVK

  1. Prepare SD Card Image

  2. Plug Mini-SAS cable to THSCM101

  3. Plug Mini-SAS cable to NXP i.MX 8M Family EVK

  4. Power on the NXP i.MX 8M Family EVK

  5. Command the NXP i.MX 8M Family to stream images from the THSCM101



Ways to use for Embedded Camera Applications

  • Use as is for volume production

  • Use as Proof of Concept

    • THine Solutions can customize the layout and manufacture the camera portion for production of End Product

  • Use as Reference Design

    • THine Solutions will license the design files and firmware

  • Use as start toward End-to-End Camera System Development

    • THine Solutions’ design tools can support full camera system customization including changes to Camera image sensor, Camera lens and ISP firmware

    • To learn more about Camera Development Kit tools information click here.



Resources

Following items are available upon request via the Request Form:
