Image Signal Processor Products
The Most Flexible and Powerful Standalone Camera Processor
2 Different Package Options
THine's Image Signal Processor, “ISP”, is a core device of camera systems. The ISP equips a high performance image signal processing engine developed by THine, and executes processes like demosaicing, noise reduction, auto exposure, auto focus, and auto white balance in high speed and high quality.

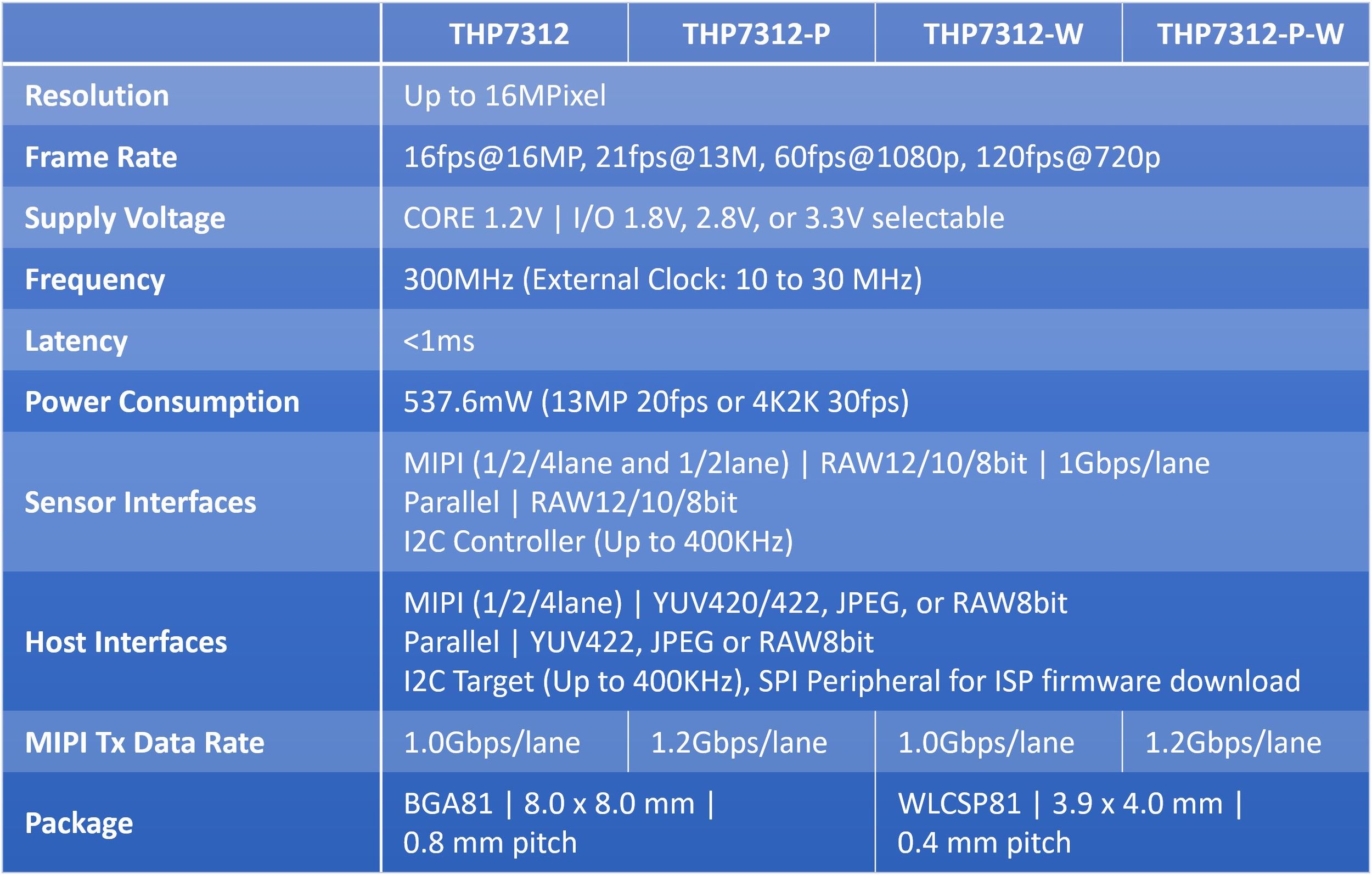

Selection Guide for Image Signal Processors
THine licenses GUI-based Camera Development Kit (CDK) to customers. Using the CDK, customers are able to customize functions and tune performance of the ISP. It enables customers to develop their camera systems easily, even without experiences in developing firmware. Among various candidates, customers can select the most suitable CMOS image sensor and camera module for their camera systems. This is another advantage of using CDK.
In developing the ISP firmware, customers are able to develop their application hardware. The THP7312 in BGA package is available at Digi-Key.

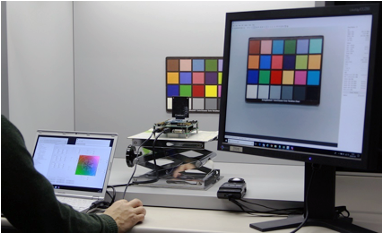

Camera Development Kit
Allowing you to develop your own customized ISP firmware IP using GUI-based tools
As an example, please see below THEIA-CAM™ kit which uses THine ISP product with dedicated ISP firmware included.
THEIA-CAM™ THSCU101
THEIA-CAM™ uses THine’s ISP with dedicated Firmware fully developed. This is the ideal tool kit to start being familiar with THine’s ISP and its capabilities.
Other IC Products to Work with ISP
For Video Transmission - To Locate Camera Away from Application Processor (or Camera Close to Action)
It is very common that a camera needs to be placed meters away from the Application Processor. With decades of technical excellence, THine offers a variety of long video transmission solutions. For details, go to SerDes IC Products page.
V-by-One® HS
V-by-One® HS offers solutions for flat panel displays, which are requiring higher and higher frame rates and resolutions. THine’s unique variable speed technology – from 600 Mbps to 4 Gbps – effectively meets the requirements of different pixel rates. THine’s original equalizer technology achieves high video signal quality and total cost reduction. It does this by enabling the use of lower-cost cables, connectors, and reducing components that are needed for control of electromagnetic interference (EMI).
2 x 3 mm THCV243
World’s smallest MIPI CSI-2 Serializer
BEST for Endoscope-type applications!
LVDS
THine Electronics, Inc. has decades of experience in LVDS products serving display and camera applications from Japan.
We offer the highest quality in terms of jitter performance, skew margin, and power consumption. As the result, a lot of customers in various applications such as tablet PCs, televisions, multifunction printers, and automotive entertainment products approve THine's LVDS.
Other Mixed Signal Technology IC Solutions
Repeaters - For Gigabit Signals
The THCX series is a repeater IC for high-speed serial signals.
By using THCX series, you can reduce the constraints on the board layout while maintaining the quality of the signal when the transmission distance is long.
Power Modules - For Application Processor Power Solution
Unique magnetic packaging with an integrated Inductor that provides advantages in Efficiency, EMI Performance and Package size.
LED Drivers - For Multiple LED Lighting
The THL35 series is leading-edge LED drivers that have debuted featuring the harmonization of our proven technologies used in LVDS and power management ICs. THL35 series is full color LED with built-in brightness control, suited to illumination, digital signage applications.
Transceivers - Significant I/O Line Count Reduction
The THine's transceiver is a high-speed full-duplex communication interface IC with an effective transfer rate of 4.6 Gbps at maximum with flexible cable selection by an unique adaptive equalizer.
User-selectable : I/O direction, output buffer type, and a number of filter stages which integrates numerous signals wired over boards in electronic equipments.
User-defined : a signal clock-synchronized by an external reference clock, an unsynchronous signal by using an internal oscilattor.
Up to two channel, I2C works as I2C bridge and as I/O expander for I2C to parallel.
Video ADC - For Conventional Video Source to drive Digital Displays
THine Electronics, Inc. is producing video ADCs based on the advanced ADC technology. We are the pioneer of the high-speed video ADCs for high definition video in the flat panel display market. Our products achieve industry-leading performance of analog-to-digital conversion and feature intelligent sync signal processor to enable automatic configuration.
