OV2740 Setup for Endoscope Applications

Introduction

This Demo shows an example of using the THine CDK to customize ISP firmware for a user selected Image Sensor.

By adding an easy to develop header board with the user selected Image Sensor to the CDK, the user can develop the ISP firmware themselves to their requirements.

In this example, we introduce a special setup for Endoscope Applications using the popular OmniVision OV2740 Image Sensor.

Setup Outlook



Overview

We prepared following items.

  • Hardware for CDK

    • Frame Grabber Board Set called MU-3

    • ISP Board with THP7312

    • Windows PC

    • Pillars and other hardware

  • Special Header Board consisting of:

    • OV2740 module

    • 2 LEDs

    • LED Brightness Controllers

  • Sea Spikes Pod

    • A colorful object widely used in Medical vision industry, available at Chamberlain Group.

  • Blackout Curtains

    • This is to emulate the endoscope environment shutting any light except for LEDs on the hardware.

Hardware Overview



CDK Hardware

Hardware Setup

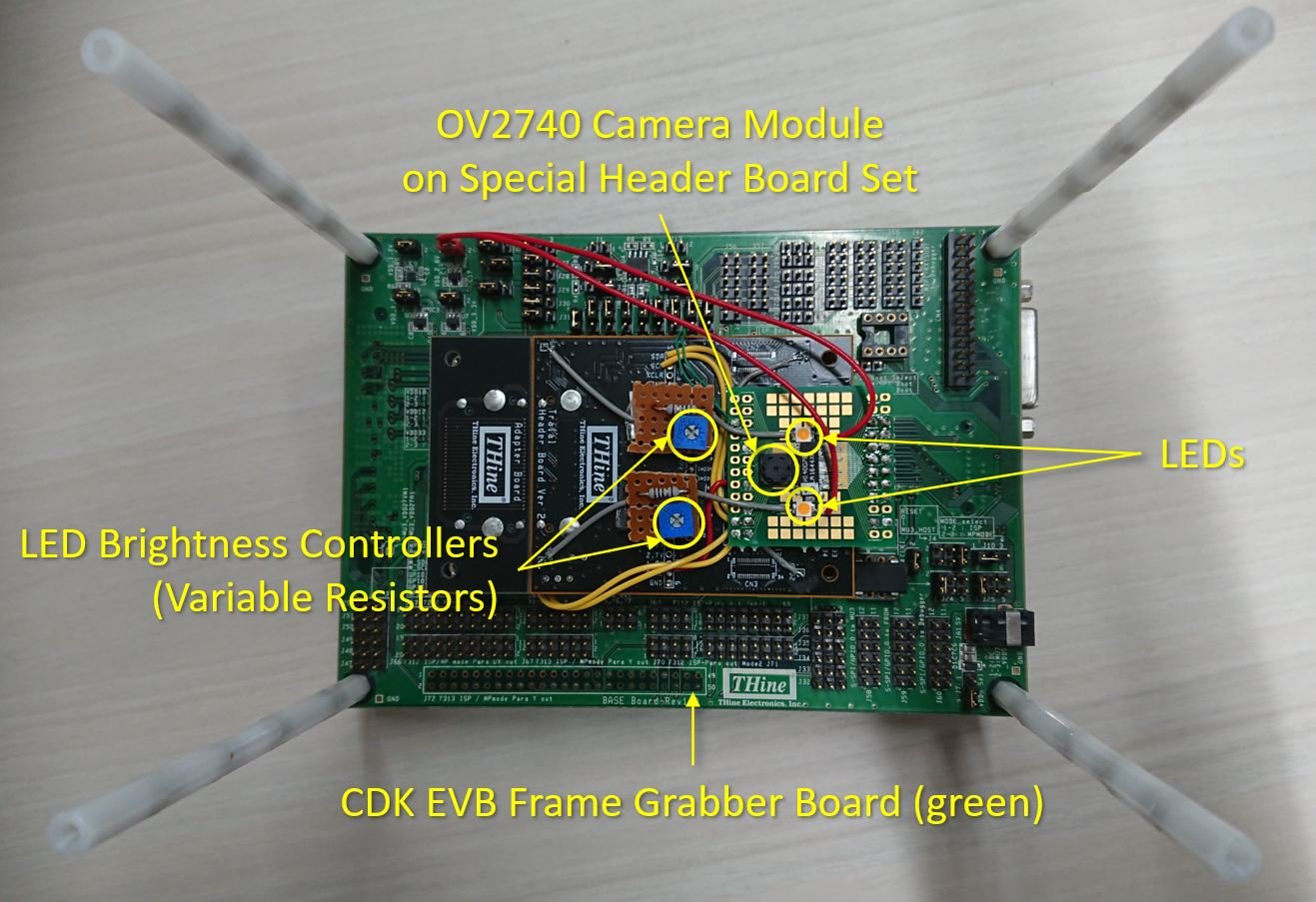

We built a special Header Board with OV2740 sensor module and 2-pc LED sitting horizontally to other CDK Hardware boards. (The reference Header Board that comes with the rest of CDK Hardware stands up vertically so the camera faces forward.)

Setting up CDK Hardware

The Camera is looking down at the Sea Spikes Pod.

Connect the Hardware to PC

Using USB 3.0 Cable, connect the CDK Hardware to PC.

Cover the CDK Hardware with the Blackout Curtain

To shut down any light, use the Blackout Curtain covering over the CDK Hardware.



Software Setup

We built an OV2740 Sensor Driver for our ISP THP7312. Using CDK tools, we confirmed many features of the OV2740 are configurable.

Using THUWin, downloading THP7312 firmware.

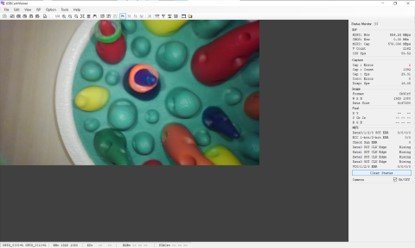

Launching USBCamViewer to see Image Streaming from the OV2740

Using CDK Color Configurator

By using the Color Configurator, you can make specific color segments stand out.
