Kit Solutions
CDK
Camera Development Kit Ver. 2.2
GUI-based ISP and Vision System Development Kit
Customers can choose from a range of supported Image Sensors up to 16MP to develop their own ISP firmware and achieve their own unique camera system needs.
Overview
CDK is a GUI-based kit allowing vision system designers to develop, customize, and fine-tune THine’s 16M pixel Image Signal Processor (ISP) firmware in house according to their requirements.
CDK consists of SDK, 3T (THine Tuning Tools), and EVB.
How it works
CDK is an option for vision system designers. As the first step, the THEIA-CAM™ THSCU101 is the best way to evaluate THine ISP capabilities and to identify what items are needed to cover your design requirements. The THSCU101 has 12 choices for resolutions. THEIA-CAM™ image quality is tested with Imatest tools, and the report is available. See THSCU101 Image Quality Report.
If the THEIA-CAM™ image quality and functionalities are good to go, you do NOT need CDK. You can proceed integrating the THEIA-CAM™ into your system. If any design support and/or customization is needed, contact us.
If you need to fine-tune image features or to fully customize the performance by changing the image sensor, the CDK will be required.
If you concluded you need to use your own CMOS Image Sensor, CDK also helps. We have a demo set with OV2740 as an example of using the CDK to customize ISP firmware for a user selected Image Sensor.
Supported THEIA-CAM™ and THine kits

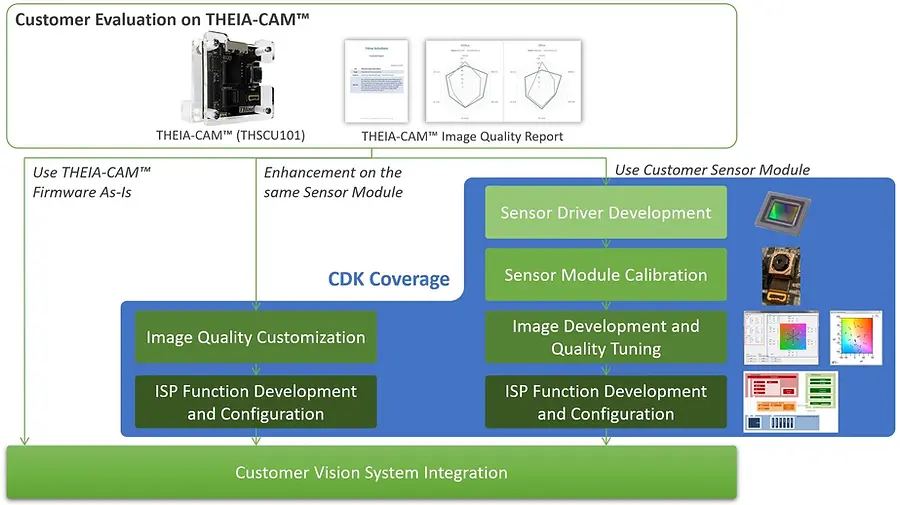

CDK Coverage in Customer Design Flow

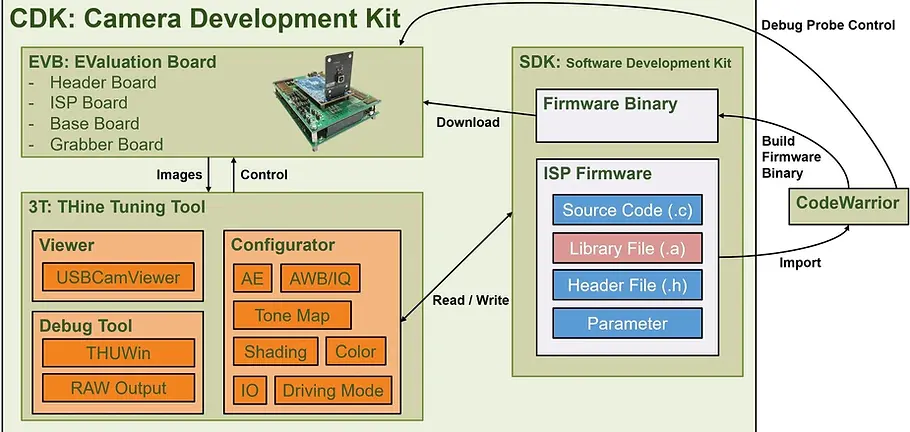

CDK Contents
Software Development kits(SDK)
-
Sample firmware source code sets
-
Firmware binary library including Internal hardware drivers
-
External hardware driver
THine Tuning Tools (3T)
-
GUI based tuning tool for THine’s ISP firmware
-
Generate tuned firmware in source or binary format
-
Or modify ISP’s registers directly to instant check

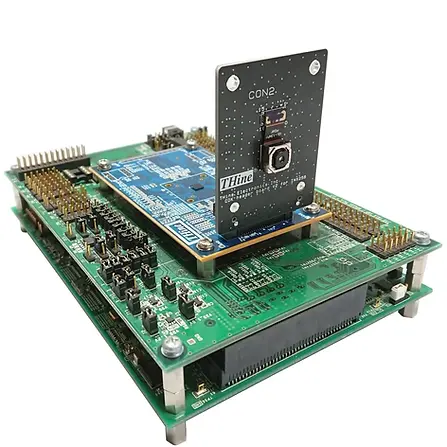

CDK EVB (THEVAP7312V2)
Hardware (EVB)
-
Header Board
-
Reference Sensor: IMX258 13MP PDAF Sensor
-
-
ISP (THP7312-P) Board
-
Frame Grabber Board Set (2 boards)
CDK Software Windows
ISP Features and Functions You can Tune
Features
Basic
-
Frame Size
-
Up to 16M pixel
-
-
Frame Rate
-
16fps@16M pixel
-
20fps@13M pixel
-
30fps@4K2K
-
120fps@1080p
-
240fps@720p etc.
-
-
Pixel Rate
-
300M pixel/sec
-
Interface
-
Sensor
-
MIPI CSI-2 | 1, 2, or 4lanes | 1G bps per lane | RAW12/10bit
-
LVCMOS Parallel | RAW12/10
-
I2C Controller (up to 400KHz)
-
-
Host
-
MIPI CSI-2 | 1, 2, or 4lanes | 1.2G bps per lane | YUV420/422, JPEG, or RAW8bit
-
LVCMOS Parallel |
-
YUV422, JPEG, or RAW8bit
-
I2C Target (up to 400KHz)
-
SPI Peripheral for ISP firmware download
-
Options on Demand
-
AF Range Selection
-
Far-end (instead of INF)
-
Near-end (instead of MACRO)
-
-
LED Driver IC Driver
-
LM3643AYFFR
-
LM3643YFFR
-
Functions
Sensor Correction
-
Black Level Correction
-
Adaptive Correction of Defect Pixels
-
Lens Shading Correction
Adaptive Image Signal Processing
-
Noise Reduction
-
Edge Enhancement
-
Multi Axis Color Correction
-
Tone Mapping
Auto Functions
-
Multi point Auto Exposure
-
Peak AE Mode
-
PDAF (Phase Detection Auto Focus)
-
Continuous Auto Focus
-
Auto White Balance
-
Flicker Cancel
Others
-
JPEG encoder
-
LED Flash
-
Horizontal Mirror
-
Special Effects (Monochrome, Sepia, Reverse)
-
MIPI Lane Assignment (Tx and Rx)
-
Test Pattern Image Output without Sensor
-
Frame Counter
-
Reference Module EEPROM Reader
Underlined items: New from the latest version 2.2.
Supported Sensors
Following sensors are some of those we have confirmed that our ISP supports. Please note the list is growing as we find and confirm any new sensors. Also please note that not every functionality has been confirmed to be listed here.
Pixel | Image Sensor | Manufacturer | Optical Size | Special Features (if any) | Driver Availability
16MP | OV16880 | OmniVision | 1/3.06 | Contact us
13MP | IMX258 | Sony | 1/3.06 | PDAF | Available
13MP | IMX214 | Sony | 1/3.06 | Contact us
13MP | OV13858 | OmniVision | 1/3.06 | Available
12MP | IMX563 | Sony | 1/2.56 | Contact us
12MP | IMX412 | Sony | 1/2.3 | Contact us
12MP | IMX377 | Sony | 1/2.3 | Contact us
8MP | IMX415 | Sony | 1/2.8 | 4K2K | Available
8MP | IMX317 | Sony | 1/2.5 | 4K2K | Contact us
8MP | IMX274 | Sony | 1/2.5 | 4K2K | Contact us
5MP | IMX335 | Sony | 1/3 | Available
5MP | OV5693 | OmniVision | 1/4 | Contact us
5MP | OV5695 | OmniVision | 1/4 | Contact us
5MP | OV5675 | OmniVision | 1/5 | Contact us
5MP | OV5670 | OmniVision | 1/5 | Contact us
2.8MP | LI7060 | Canon | 1/2.3 | Low Light Performance | Available
2MP | LI7050 | Canon | 1/1.8 | Low Light Performance | Available
2MP | IMX462 | Sony | 1/2.8 | Contact us
2MP | IMX327 | Sony | 1/2.8 | Available
2MP | OV2680 | OmniVision | 1/5 | Contact us
2MP | OH02A10 | OmniVision | 1/6 | For Endoscope | Available
2MP | OV2740 | OmniVision | 1/6 | For Endoscope | Available
1.3MP | OH01A10 | OmniVision | 1/11 | For Endoscope | Contact us
1MP | YACY9A1C | SK Hynix | 1/9 | For Endoscope | Contact us
0.4MP | IMX287 | Sony | 1/2.9 | Global Shutter | Contact us
Documents, Technical Information
CDK materials are available on your request. Contact us.
We have 4 different ISP choices, all of which the CDK2.2 supports.
THP7312 | 1.0G bps/lane MIPI CSI-2 Tx | BGA Package | Product Overview | Digi-Key
THP7312-W | 1.0G bps/lane MIPI CSI-2 Tx | 4 x 4 WLCSP Package | Product Overview
THP7312-P | 1.2G bps/lane MIPI CSI-2 Tx | BGA Package | Product Overview
THP7312-P-W | 1.2G bps/lane MIPI CSI-2 Tx | 4 x 4 WLCSP Package | Product Overview
For more information, visit ISP overview in THine Electronics, Inc. site.
