Kit Solutions
THEIA-CAM™ Family Kit | THSCU101
13MP PDAF UVC Camera
The First THEIA-CAM™
-
13M Pixel and Other Choices
-
Ultra-Fast Autofocus
-
Best-in-Class Image Quality
-
Scalable for High Volume Production
-
USB Video Class (UVC) and Extension
-
1.4” x 1.4” Single Printed Circuit Board
-
Multiple SBC/Platform Support
Overview
Image Resolutions
General UVC Functions
-
Output Size and Frame Rate selection
-
YUV422 or JPEG selection
Image Processing UVC Functions
-
Brightness
-
Contrast
-
Hue
-
Saturation
-
Gamma
-
White Balance Auto
-
White Balance
-
Backlight compensation
-
Manual Flicker Cancel
Camera Control UVC Functions
-
Output
-
Auto Exposure Mode
-
Exposure Time (Absolute)
-
Auto-Exposure Priority
-
Focus (Absolute)
-
Roll
UVC Extension functions
-
Exposure Compensation
-
Flicker Cancel Priority
-
Maximum Frame Rate
-
Auto Focus Mode
-
Noise Reduction Mode
-
Document Mode
-
Color Mode
-
JPEG Q-Factor
Image Quality
THSCU101 Image Quality Report states the THSCU101’s image quality is better than that of iPhone 12 in 4 areas out of 6.

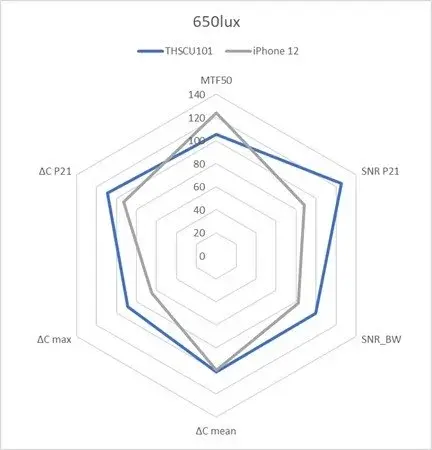

Under 650lux, THSCU101 performs better than iPhone 12 by SNR P21, SNR_BW, Delta C max, and Delta C P21 criteria.

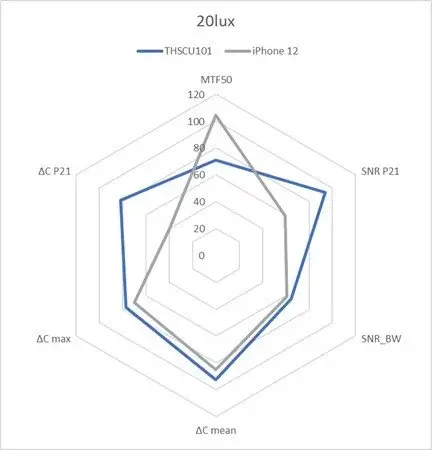

Under 20lux, THSCU101 performs better than iPhone 12 by SNR P21, Delta C mean, Delta C max, and Delta C P21 criteria.
Quick Start Guide
THSCU101’s out of experience is truly plug-and-play. With Windows PC, Mac, or Android device, all you have to do is to connect with a USB cable and launch an app for USB Cameras.
Note: For Mac without a USB Type-A connector, a USB 3.0 Micro-B to Type-C cable is needed. The USB 3.0 Micro-B to Type-C cable is needed for Android device.
Before You Start..
Make sure your THSCU101 Firmware is up to date.
Windows PC
Connect THSCU101 and PC with USB Cable
Launch Camera app.
Click Change Camera iicon at top right corner until "Thine Solutions THEIA-CAM" is selected.
Click Change Camera iicon at top right corner until "Thine Solutions THEIA-CAM" is selected.
Mac
Connect THSCU101 and Mac with USB Cable.
Launch Photo Booth.
Select “THine Solutions THEIA-CAM” in Camera Menu.
Mac starts streaming the PDAF images from THSCU101.
Android
Connect THSCU101 and Mac with USB Cable.
Android device starts streaming the PDAF images from THSCU101.

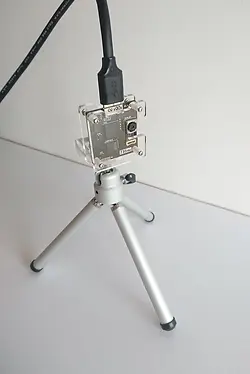

Acrylic Case (included) is compatible to regular tripods (not included).
Linux
THSCU101 also supports Linux-based platforms with NVIDIA Jetson Nano or Raspberry Pi. To learn more information click here.
If THSCU101 performs well to cover your requirement and you are using NXP i.MX 8M Family, another THEIA-CAM™ THSCM101 is perfect solution for your next step. For further information, access THSCM101 page.

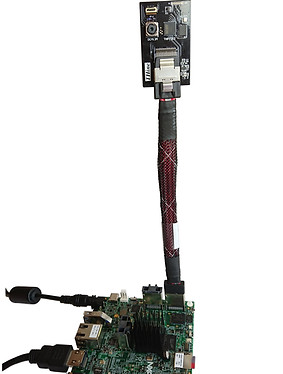

THSCM101 connected to NXP i.Mx 8M EVK
Advanced Steps
UVC（USB Video Class）Configuration
Partnering with Infineon, the UVC capabilities of THSCU101 are scoped to support variety of commercialized final products. In other words, the THSCU101 is supposed to work as a USB Camera in the market. Therefore, well-designed software should be able to support most of UVC functions listed in the above section that THSCU101 equips.
Extension Configuration
With Infineon’s support as well as THine’s years of experiences assisting numerous customers worldwide, we developed as many as 8 Extension items with variety of choices based on actual market use cases. Also, we developed a POWERFUL tool, Camera Extension Controller (a Windows app), to configure those items.

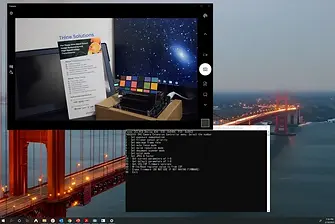

Camera Extension Controller Menu Window
ISP Firmware Customization
If you need to tune the THEIA-CAM™ image quality and/or customize its ISP functions, you can do it by using our Camera Development Kit (CDK). Further, if you need to use your own selected sensor module, the CDK can help. Camera Development Kit.
Ways to Use in Embedded Camera Applications
After acquiring THSCU101’s performance information and its components’ potential capabilities to further perform and achieve your project goals, we offer several approaches to quickly establish the feasible development plan for the vision system embedded to your program.
-
As is for volume production
-
As Proof of Concept
-
THine Solutions can customize the layout and manufacture the camera portion for production of End Product
-
-
As a Reference Design
-
THine Solutions can provide the design files and firmware
-
-
As a start towards End-to-End Camera System Development
-
THine Solutions’ design tools can support full camera system customization including changes to Camera image sensor, Camera lens and ISP firmware.
-
To learn more about Camera Development Kit(CDK) tools information click here.
-
Design Integration Example

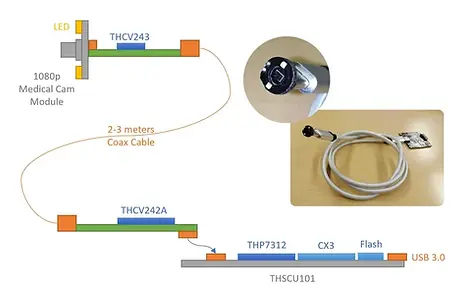

Medical scope application for proof of concept to integrate Camera module in a thin medical probe with THine SerDes and a modified THSCU101 UVC Camera board
.webp)
THSCU101
Small form factor allows as-is integration.

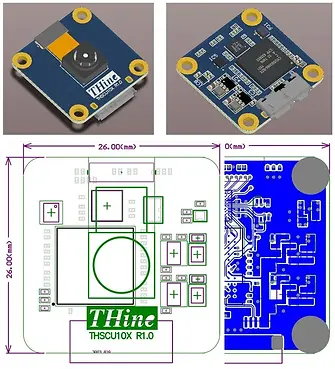

Custom Design Example
Layout customization allows quick concept-to-design transition.
